Construction sites are buzzing with a vast array of heavy machines, each designed to perform specific tasks that bring our built environment to life. From the roads we drive on to the dams that hold back water, these machines are the unsung heroes of infrastructure development. Understanding what these machines do not only makes watching construction more enjoyable but also reveals the incredible engineering behind everyday structures.
Let’s dive into the world of construction machinery, exploring the versatile tools that move earth, lay roads, handle concrete, and lift massive materials. This overview will give you a solid foundation to recognize and appreciate the machines shaping our world.
Earthmoving Machines: Digging, Carrying, and Shaping the Land

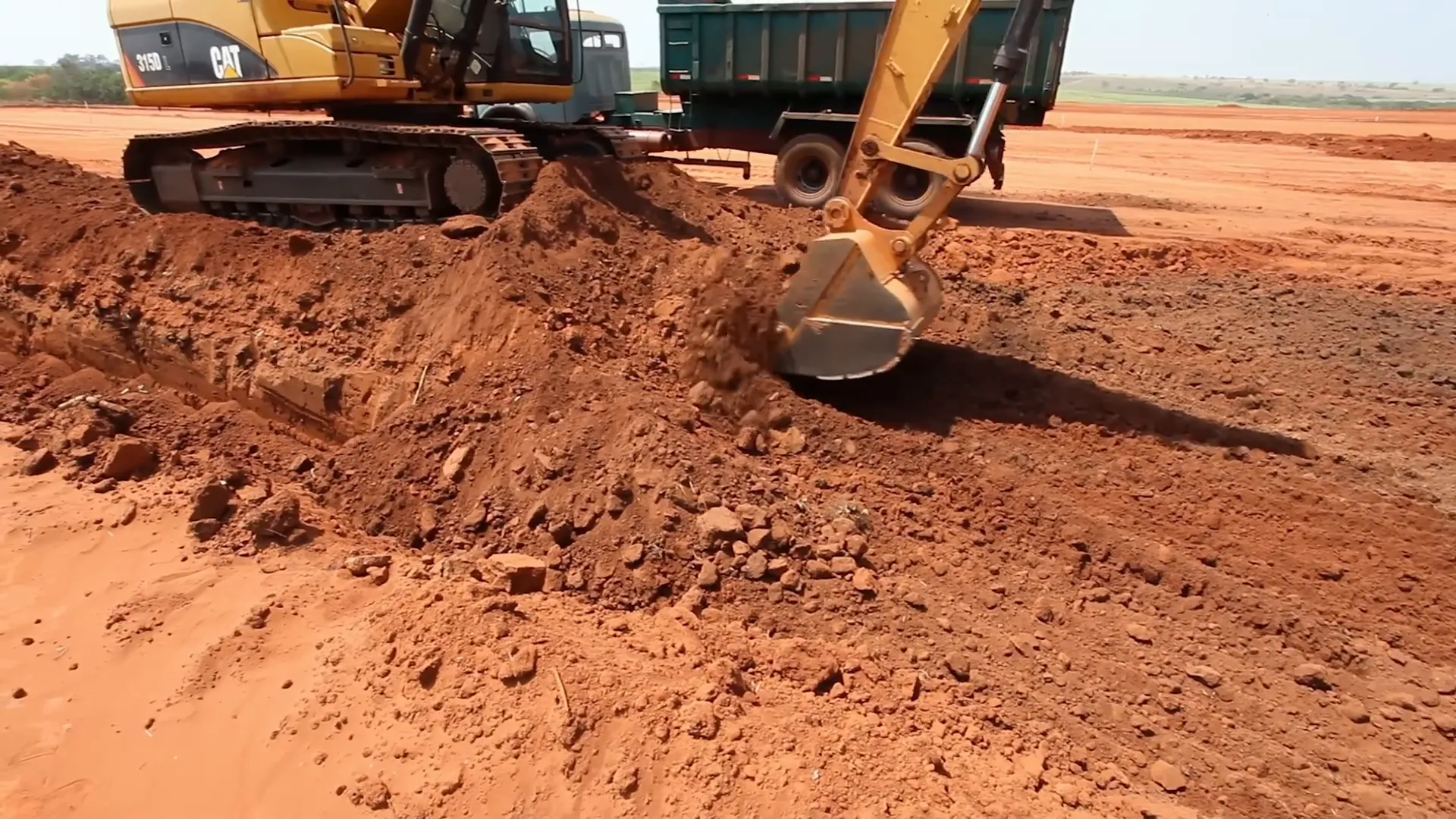

Much of construction starts with moving soil and rock. Human digging is limited, so heavy machinery steps in to handle bulk earth efficiently. The excavator is indispensable on job sites due to its versatility. Its heavy steel bucket can do the work of an entire day’s digging with just one scoop. Beyond digging, excavators serve as lifters, pushers, cranes, and even hammers.
Next in versatility is the skid steer, a compact machine often equipped with a bucket but capable of quickly switching to many attachments like mowers, forklifts, or drill rigs. Its small size makes it perfect for tight spaces where larger machines can’t operate.

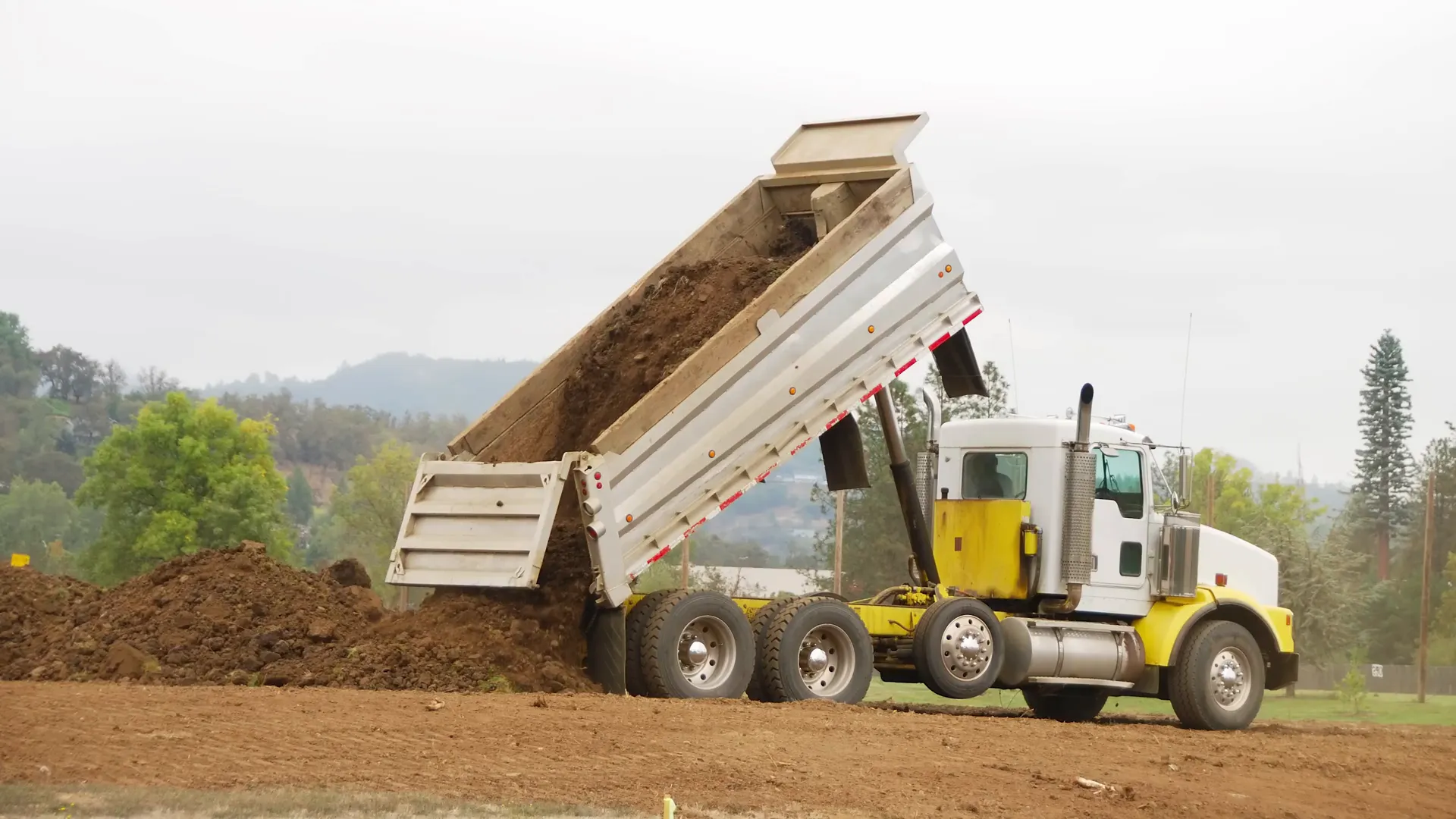

The loader is designed to carry soil and rock across short distances on site. Typically articulated in the middle for sharp turns, loaders scoop material with a large front bucket and dump it where needed. For longer hauls, dump trucks come into play, featuring large open-topped beds that tilt hydraulically to unload materials. Many dump trucks have auxiliary axles to spread heavy loads across more tires, ensuring compliance with roadway and bridge weight limits.
A specialized earthmoving machine is the scraper. Unlike loaders that load from the ground and then transport soil, scrapers combine both functions. A huge blade scrapes soil directly into a hopper, which is carried to the destination and unloaded hydraulically. Scrapers are often used for large embankments such as highways and dams.
The backhoe acts as a hybrid between an excavator and a loader, ideal for small sites where having two separate machines isn’t practical. Meanwhile, the bulldozer excels at moving massive amounts of material at ground level, spreading tons efficiently with its tank-like tracks.
For digging long trenches for pipes and utilities, the trencher is the machine of choice. Many trenchers use a tooth chain resembling a giant chainsaw to cut through the earth.
One handy tip to sound like a pro on any site is to specify the drive type of a machine, such as calling it a wheel loader or a tracked excavator. This helps clarify exactly which machine you’re talking about.
Road Construction Machines: Building the Largest Engineered Structures

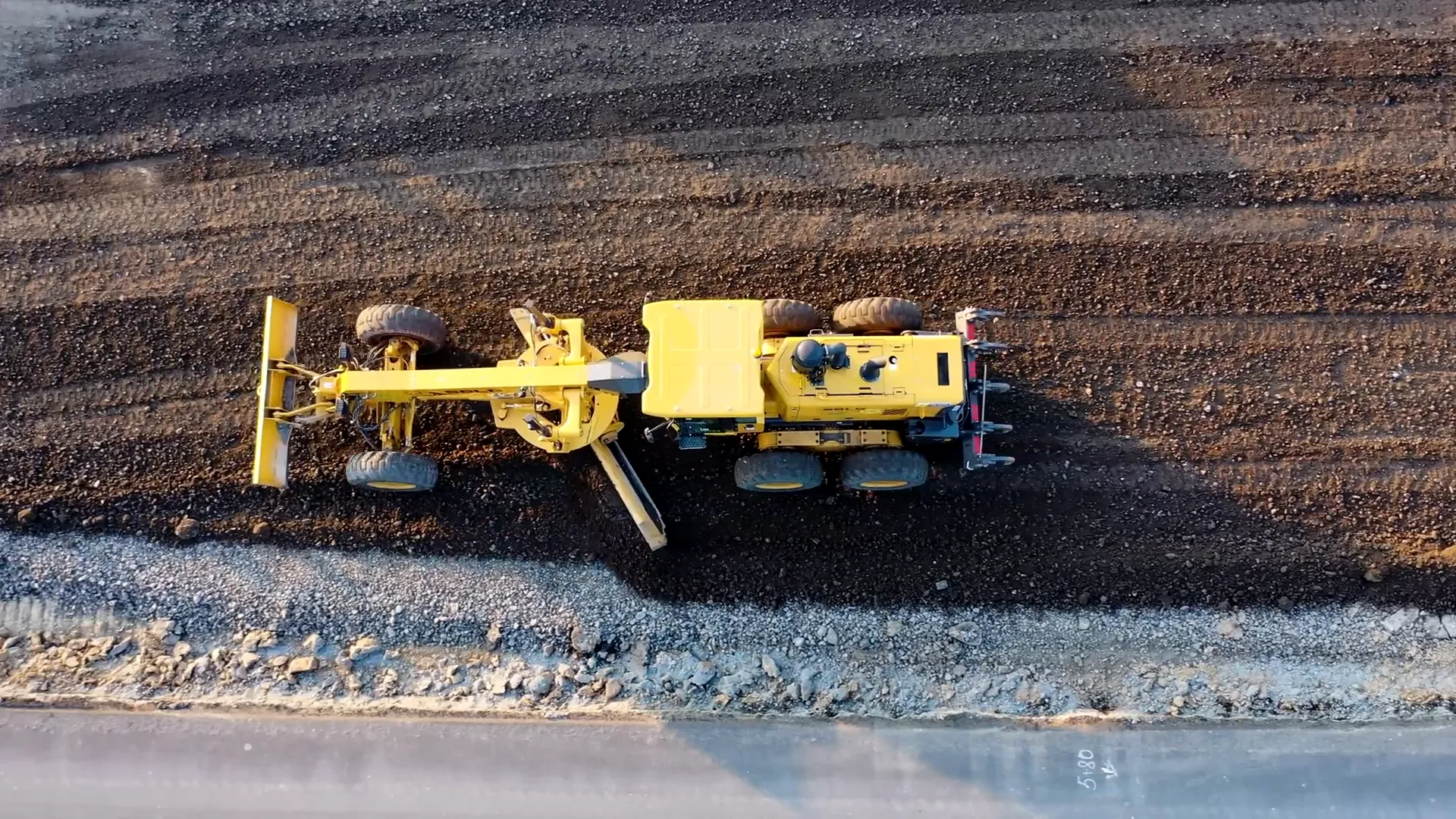

Roads are some of the largest engineered structures we encounter daily, and building them requires specialized equipment. The grader is an earthwork tool with an extra-long wheelbase, perfect for precisely leveling surfaces and smoothing bumps to create an even grade.
After shaping, soil must be compacted to prevent settling. Roller compactors come in various types depending on the material:
- Smooth drums for most soils and asphalt
- Sheep’s foot and padded drums for clay and silt
- Pneumatic tire rollers to knead and seal surfaces
Many rollers also vibrate to shake soil particles into a denser configuration.

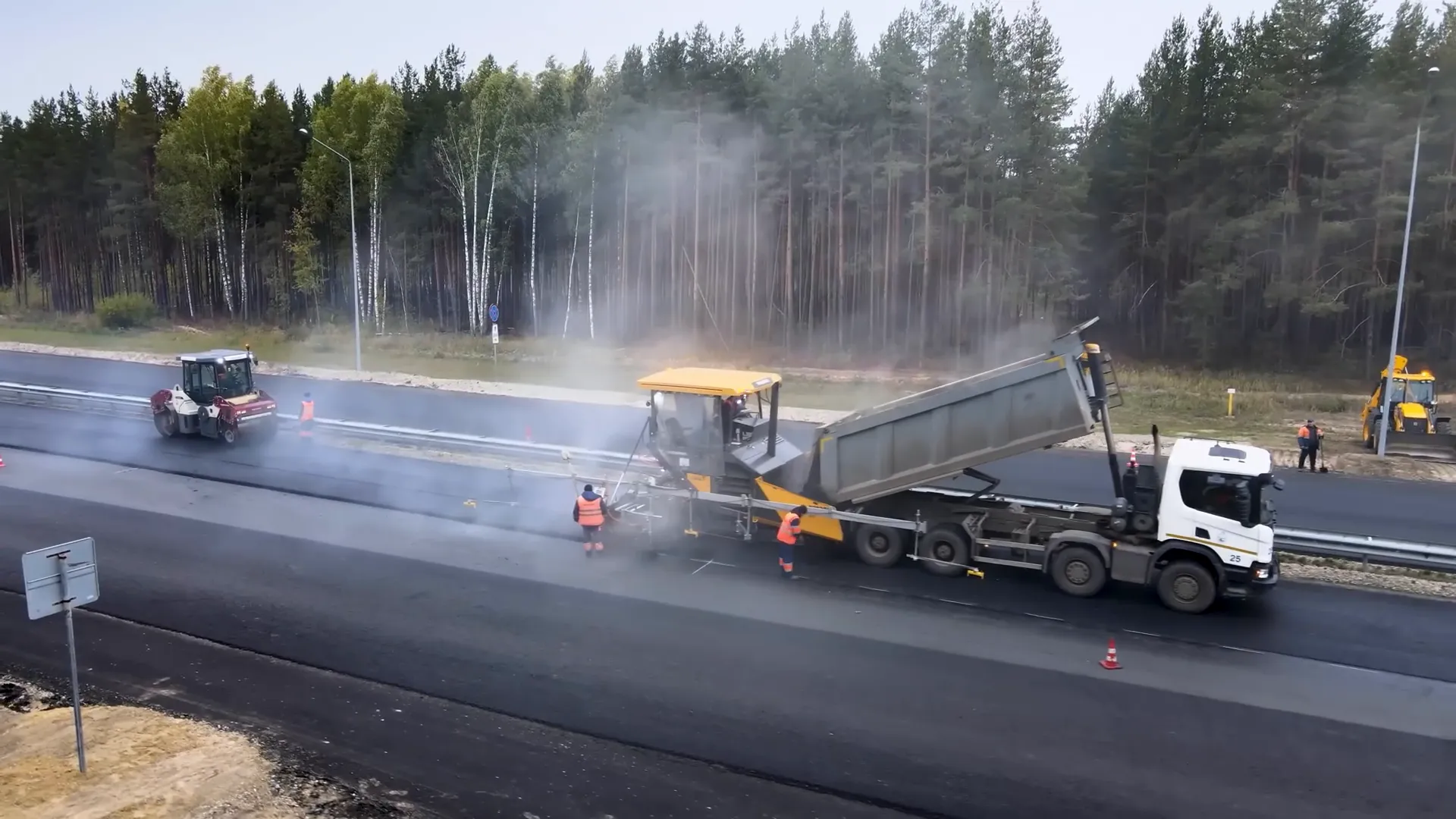

The asphalt paver is where the road truly takes shape, spreading hot asphalt evenly over the subgrade using a screed. Some pavers follow a stringline to maintain precise elevation. For concrete roads, a slip former continuously pours and shapes concrete for pavements, curbs, and barriers without the need for traditional formwork.
When roads wear out, the top layer must be removed before repaving. This task is performed by an asphalt mill or planer, which grinds the surface with a rotating drum. The removed material is conveyed into dump trucks following behind. This sequence of dump trucks, pavers, and rollers is often called a paving train, ensuring continuous and efficient road construction.
Auxiliary Equipment: Power, Lighting, and Support Tools
Not all construction equipment has wheels or tracks. Some essential tools are trailers or trailer-mounted units:
- Light towers illuminate sites for night or underground work
- Air compressors power tools like jackhammers, sandblasters, and painting rigs
- Diesel generators provide electric power when grid access is unavailable
Material Handling Machines: Cranes and Lifting Equipment
Moving heavy materials like girders or concrete pipes requires cranes and similar equipment. A pipe layer specializes in handling and placing large pipe sections into trenches precisely.
The telescopic handler (also called telehandler or teleporter) is an all-terrain forklift with a boom that telescopes and accepts various attachments, making it versatile for delivering materials exactly where needed.

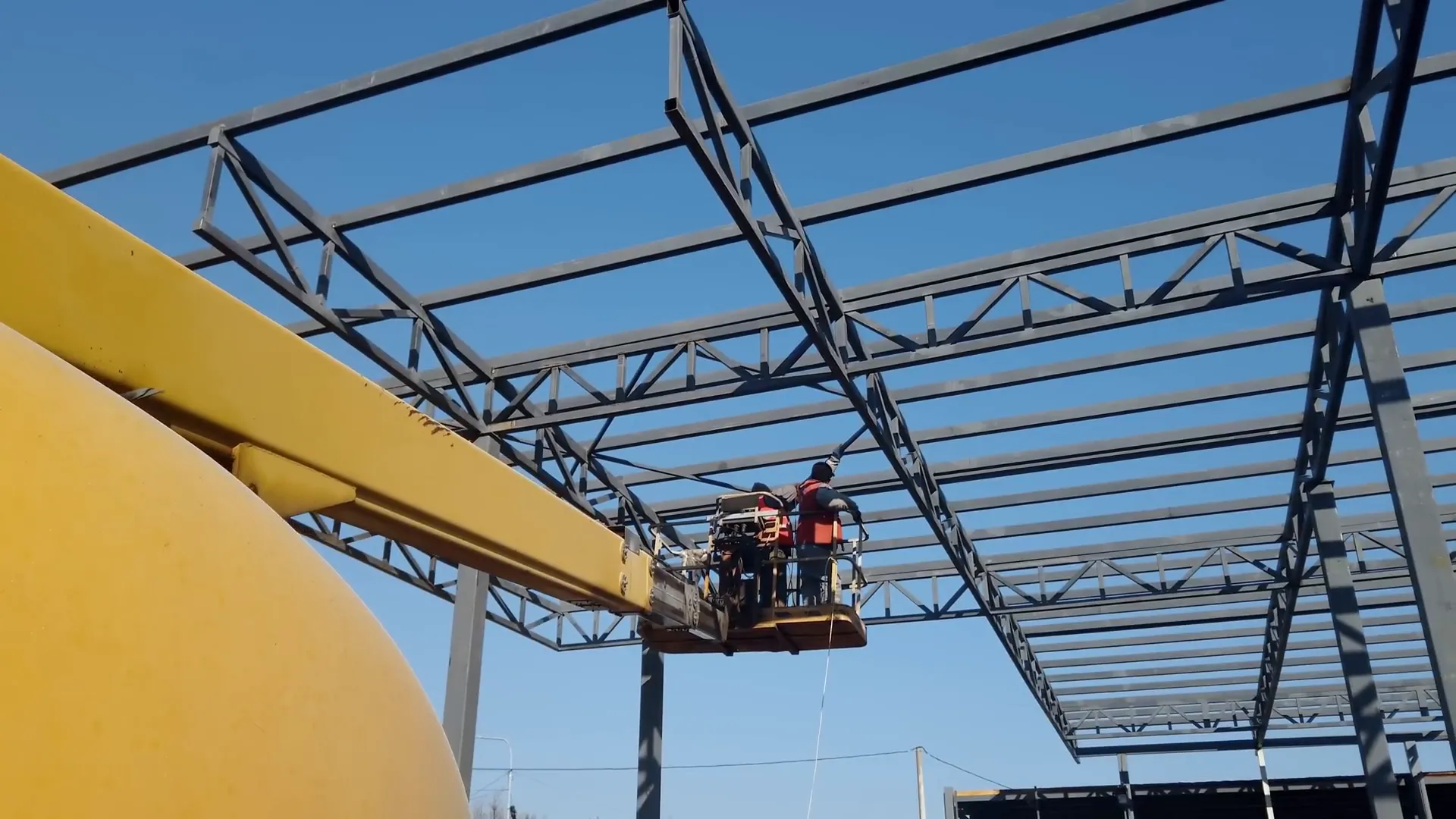

For lifting personnel, boom lifts and scissor lifts provide safe, precise, and elevated platforms controlled by the operator while standing on them. Bucket trucks combine boom lifts with trucks, commonly used in utility and electric pole work.
Large-scale cranes come in several types:
- All-terrain cranes can travel on highways and rough sites without perfect paving
- Rough-terrain cranes have giant rubber tires for challenging off-road conditions but require transport to the site
- Crawler cranes use tracks, can carry immense loads, and extend to great heights. They are modular and can be configured with different booms, counterweights, and jibs. Some are fitted with wrecking balls for demolition.
- Tower cranes have large counterbalanced horizontal booms mounted atop tall towers, often requiring assembly by other cranes and capable of lifting heavy loads over vast construction sites.
For bridge construction, a launching gantry is a specialized crane that uses the existing bridge structure to lift and place entire pre-built sections.
Foundation and Concrete Handling Machines
Foundations often require deep support columns or piles sunk into bedrock or stable geological layers. Two main machines handle this:
- Pile drill rigs dig deep holes for reinforced concrete piles, similar to oil and gas drilling rigs
- Pile drivers repeatedly strike piles (wood, steel, or concrete) to drive them into the ground
Concrete handling is a specialized field with many machines:
- Mixer trucks (often called cement trucks) mix concrete ingredients en route to the site due to concrete’s limited curing time
- Concrete pumps use high-pressure systems to deliver concrete to hard-to-reach locations, sometimes operating at over 100 times atmospheric pressure
- Ride-on trowels help finish large slabs by smoothing them once they start to set
- Mobile batching plants produce vast volumes of concrete onsite for large projects where trucks alone aren’t sufficient
- Shotcrete machines spray concrete onto sloped or vertical surfaces to stabilize rock faces, tunnels, or pools using compressed air
Specialized Machines and Techniques
Some construction tasks require highly specialized machines:
- Directional drilling machines install utility lines under built-up areas without trenching. These machines steer underground to avoid obstacles.
- Soil nail rigs drill horizontal shafts into slopes and insert soil nails to improve stability
- Grout plants mix and inject grout to fill voids and stabilize soils
- Wick drain machines install vertical drains in clay soils to accelerate water drainage and soil settling, speeding up construction timelines
- Cured-in-place pipe lining repairs pipelines without excavation by inserting and curing a resin-impregnated liner inside existing pipes

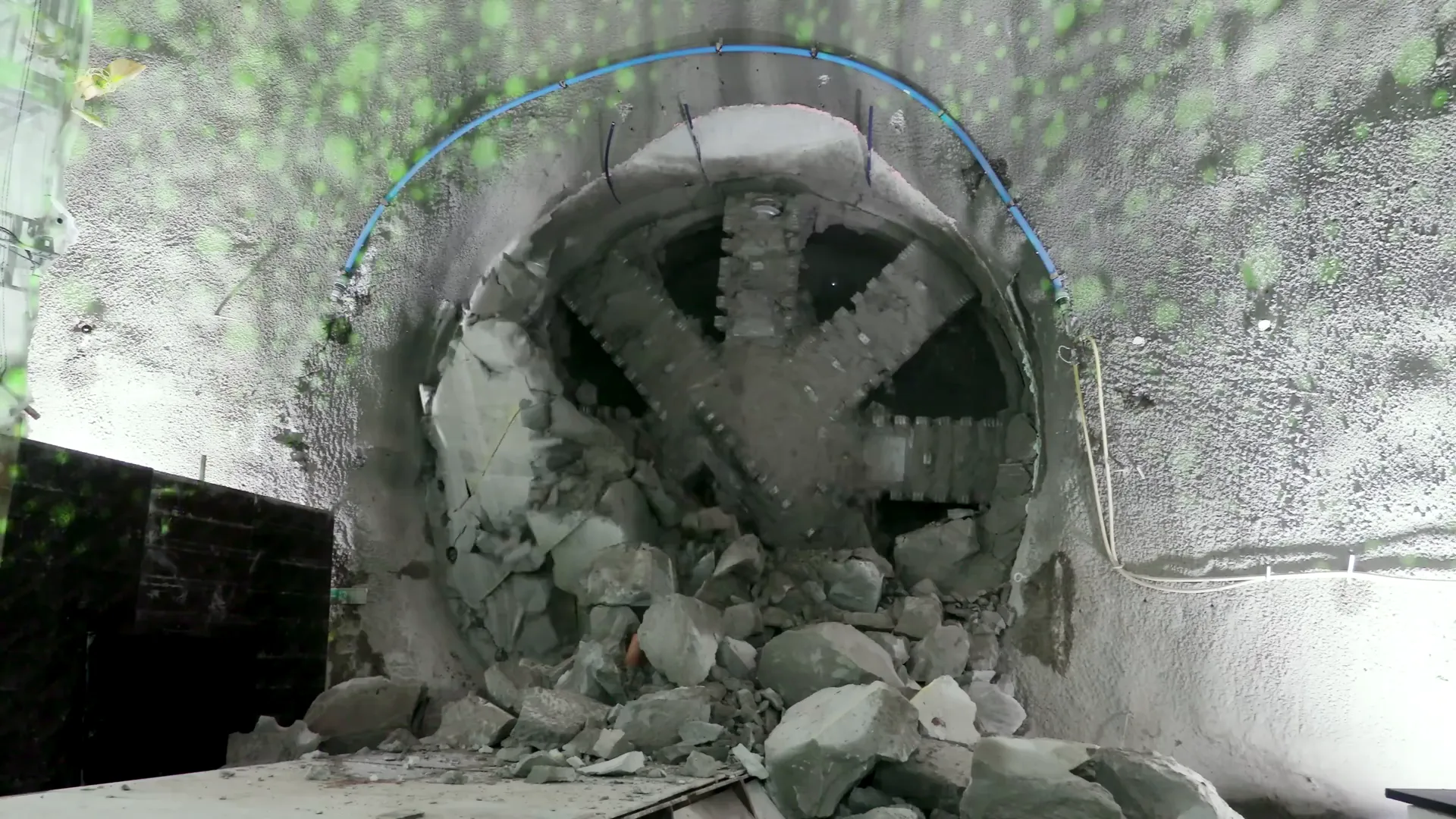

- Tunnel boring machines (TBMs) are massive machines that simultaneously cut tunnels, remove material, and install shoring, enabling large-scale underground construction
Conclusion: The Ever-Evolving World of Construction Machinery
The construction industry is filled with an astounding variety of machines, each tailored to specific tasks and project scales. Manufacturers continuously innovate to improve efficiency and safety, and many machines cross over into industries like mining, oil and gas, and railroads.
Learning to recognize these machines and understanding their roles can greatly enhance your appreciation of the built world around us. Whether it’s a massive crawler crane or a compact skid steer, each machine tells the story of human ingenuity and the complex process of construction.
So next time you pass a construction site, take a moment to spot the machines at work and consider the incredible engineering behind them. It’s a fascinating world where every machine has a purpose and every job site is a stage for monumental feats of building.
